Aurora Tools

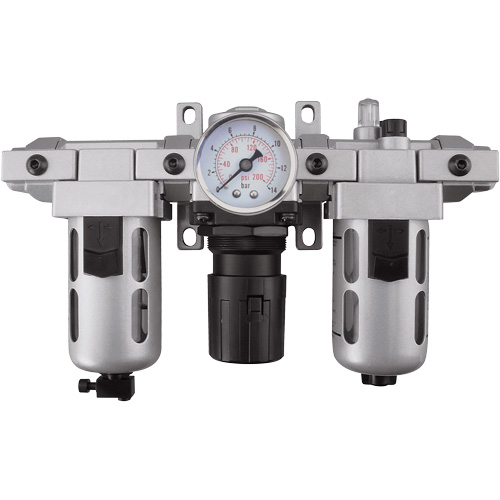

Modular Filter, Regulator & Lubricator (Gauge Included), 1/4" NPT

Model: TYY181

  • Modular Filter, Regulator & Lubricator (Gauge Included), 1/4" NPT Dufferin Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$142.00 / Each

Connection Size:

1" NPT1/4" NPT1/2" NPT3/8" NPT3/4" NPT

Manufacturer's Warranty

  • 1 Year Limited

Connection Size

1/4" NPT

Max. Air Flow

18 SCFM @ 105 PSI

Operating Pressure

7-145 PSI

Bowl Material

Polycarbonate

Bowl Capacity

0.68 fl. oz.

Filter Bowl Capacity

0.30 oz.

Lubricator Bowl Capacity

0.68 oz.

Series

FRL100

Country Of Origin

India

  • Assembly of all three individual components
  • Components are attached in series using spacers and piping adapters, which make the individual components easily removable and mountable without disturbing the pipe line
  • Comes complete with wall mounting bracket
  • Regulators are used to maintain a steady outlet pressure, unaffected by variations or fluctuations in the inlet pressure
  • Filter used to separate dust, dirt, moisture and other contaminants from compressed air
  • Filter features press-type manual drain with nighttime drain feature, which automatically drains off the bowl once the compressed air supply to the filter is switched off
  • Filter has sintered bronze, 40-micron filtering element
  • Lubricator used to feed lubricants to pneumatic equipment and maintain a constant oil-to-air density over a wide range of flow
  • Fog/Micro Mist type lubricator, up to 50' pipe runs
  • Air filter, regulator and lubricator come with NPT threads and gauge
